ARF070Fish Storage Cabinet
Ideal solution for refrigerating fish products, the gastronorm ARF070 refrigerated cabinet has an internal and external structure in stainless steel, presenting itself as the ideal solution for refrigerating fish products. With a capacity of 605L this equipment has a high performance cooling system with low energy cost for your business. Includes 8 plastic trays and internal stainless steel drainers, suitable for storing and refrigerating fish.
Ergonomically designed door thanks to the integrated full-length handle.
The ARF070 cabinet can be customized to your needs, there are several customization options:
- Touch Display
- Leveling Feet or Wheels
- Guides
- Plastic cuvettes
Custom GastronormEquipment tailored to your business
Protects equipment from electrical damage due to power surges.
Improves the performance of the cold circuit and reduces energy consumption. Increases the useful life of the evaporation system, due to lack of resistances.
High performance cooling systems with low energy cost for your business.
Greater air flow inside the equipment, more uniform temperatures and high capacity for preservation and/or freezing.
Removable sealant for easy maintenance and sanitisation of the equipment.
Designed to simplify access to all parts and components of the equipment for quick maintenance.
Interior tank provides easy cleaning and sanitising of the equipment.
Allows shelf repositioning as needed.
Optimized heat dissipation system enhancing high cooling capacity.
Modern and Attractive Design for any commercial area.

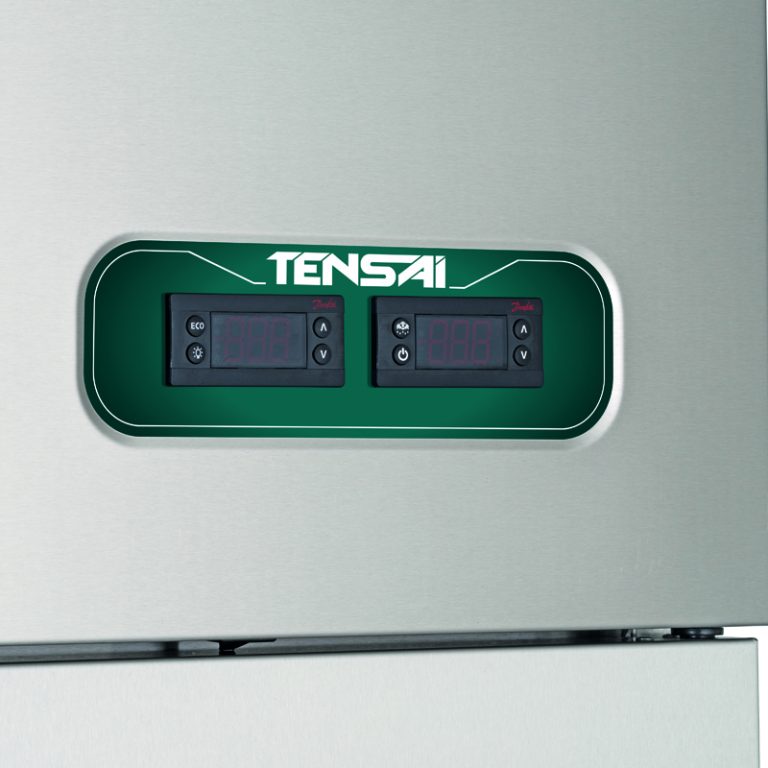

Controller with multiple adjustable parameters, allowing the most suitable use at all times.
With Global Warming Potential close to zero (GWP=3), the R290 Gas does not destroy the ozone layer or contribute to the emission of greenhouse gases, and allows significant reductions in energy consumption. High performance with low energy cost.
Quickly reaches the selected temperature in environments with high demand, where sequential door opening and placement of loads inside is intense.
Excellent lighting with low energy consumption.
Possibility of adjusting the equipment to space restrictions.
Perfect for professional use, ensuring the door is always closed.
Uniform air flow inside the equipment permits temperature stability which garanties better preservation while ageing.
Ergonomic, easy to open and easy to clean.
CUSTOMIZATIONS
Touch Display
LEVELLING FEET
Guides
Shelves
ROLLERSWHEELS
SPECIFICATIONS
GENERAL CHARACTERISTICS
Energy Efficiency Class (Reg.2015/1904)D
Energy consumption (kWh/24h) 2,650
Energy consumption (kWh/year)967
Total Net Volume (lt) (EN16825)432
Total Gross Volume (lt)605
Climate Class 5
Temperature ClassM1 (+5ºC)
Operating Temperature-1°C / +8°C
Voltage (V) 220-240
Frequency (Hz) 50
Electric Power (W) 370
Rated Current (A) 2,20
Refrigerant Gas R290
Number of boxes 8
Electronic ThermostatYes
Ventilated RefrigerationYes
Automatic DefrostingYes
Drip Plate for Water EvaporationYes - Hot gas
DIMENSIONS
Dimensions without Packaging (mm) 2060x700x890
Dimensions with Packaging (mm) 2160x770x940
Weight without Packaging (kg) 115
Weight with Packaging (kg) 130
LOADING CAPACITY
Capacity 20´18
Capacity 40´36
Capacity 40´ High Cube36
Capacity Mega Truck45
