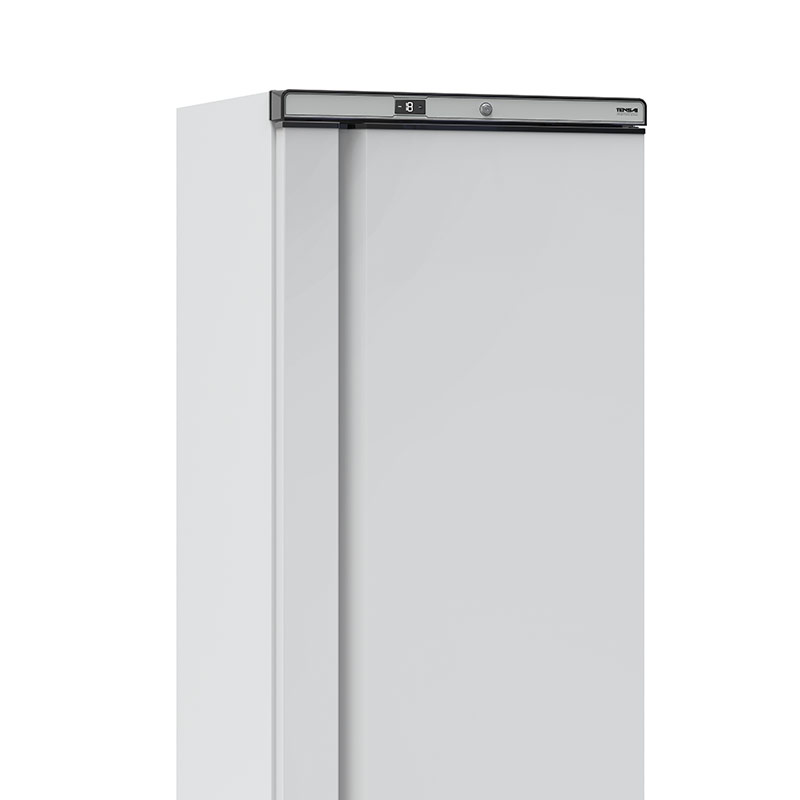

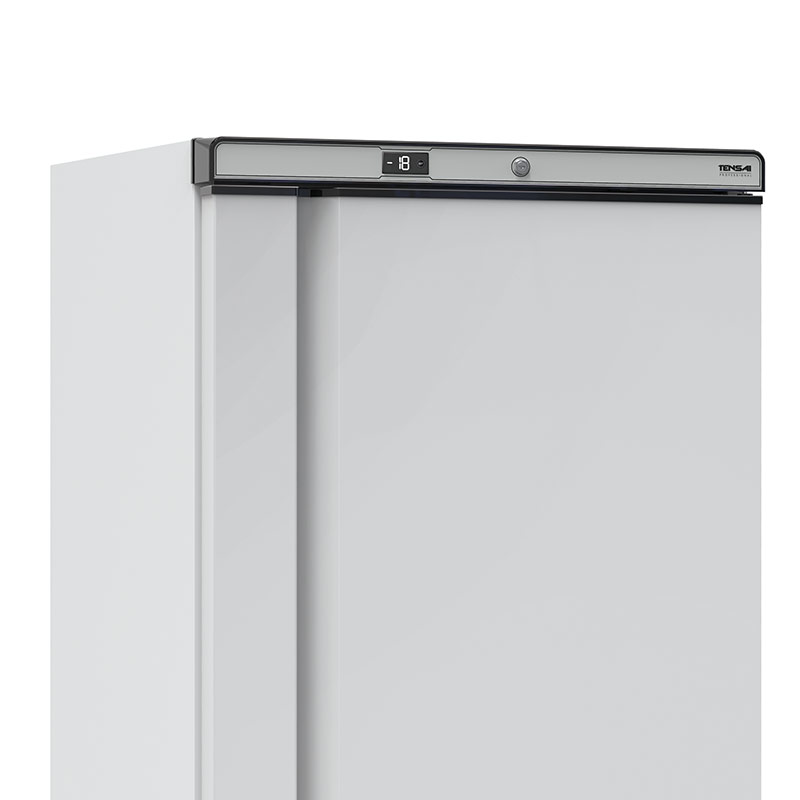

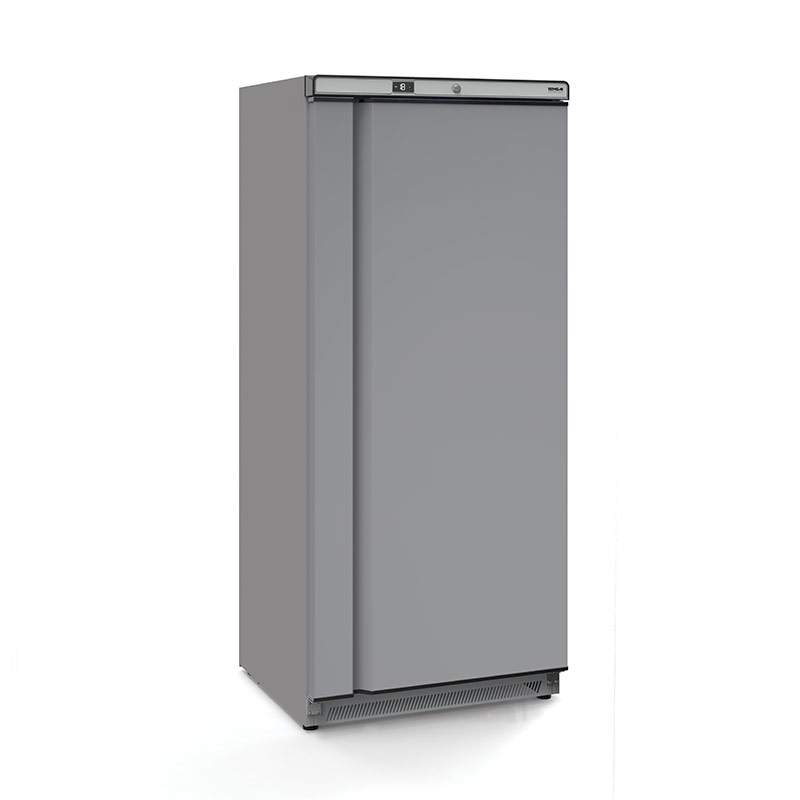

ACL080PROFESSIONAL VERTICAL FREEZING
The ACL080 is a professional upright freezer designed for businesses that need capacity, accessibility, and organization in a robust and compact solution.

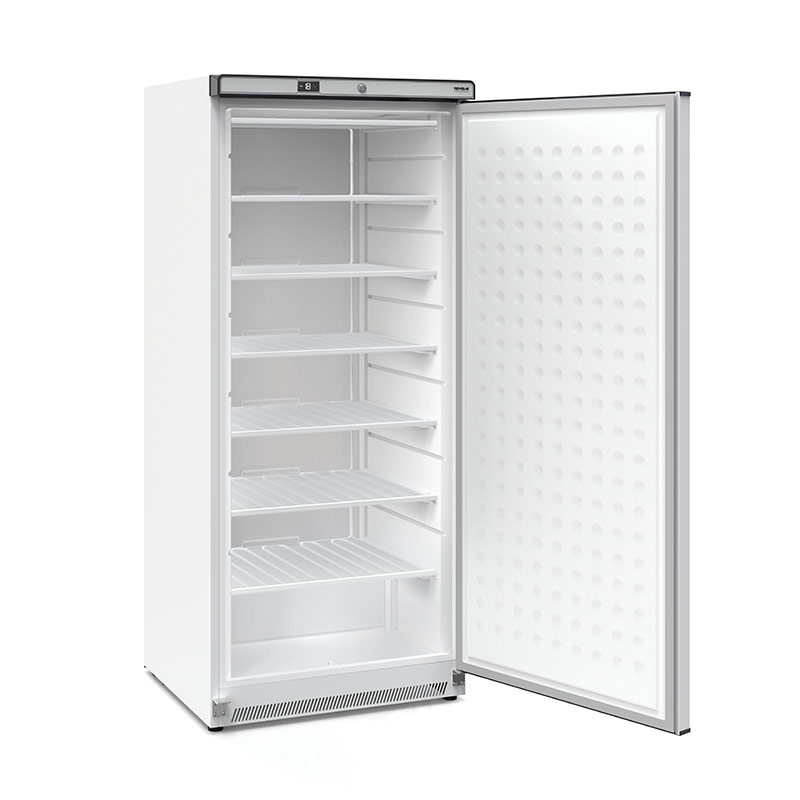

With its vertical structure,
configurable interior, and high usable capacity, it allows you to organize products by level, facilitate daily access, and optimize available space in professional environments.
The ACL080 case can be customized to your specifications; there are several personalization options available:
- Touch Display

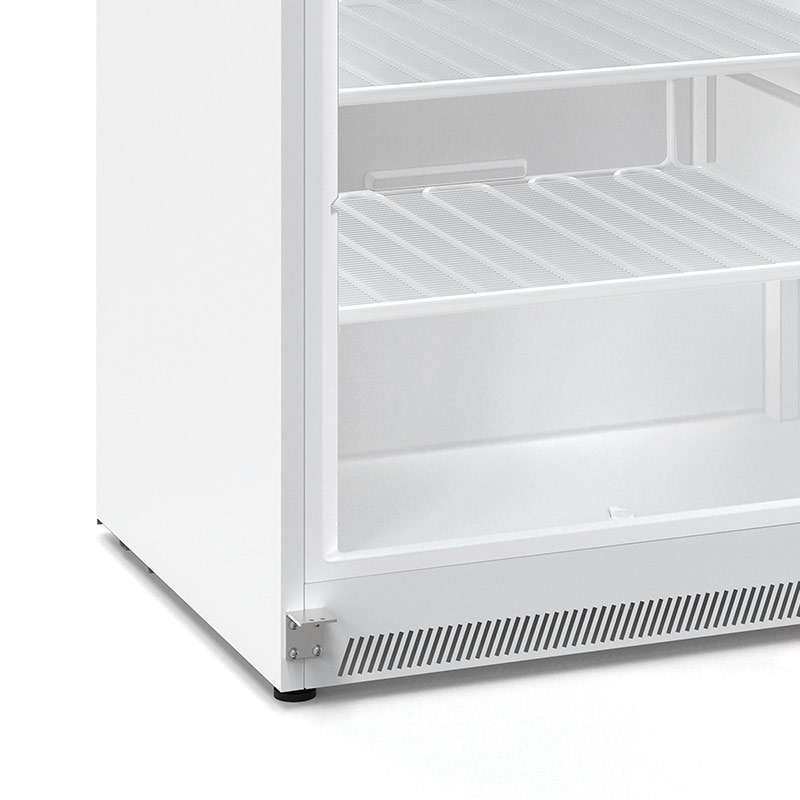

- Leveling Feet or Wheels
- Guides
- Shelves

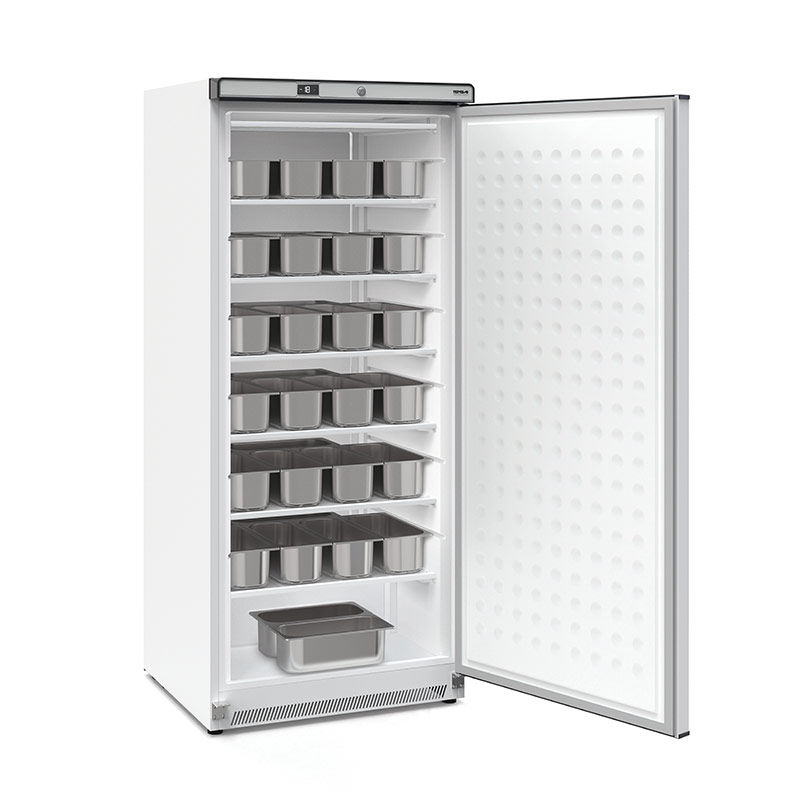

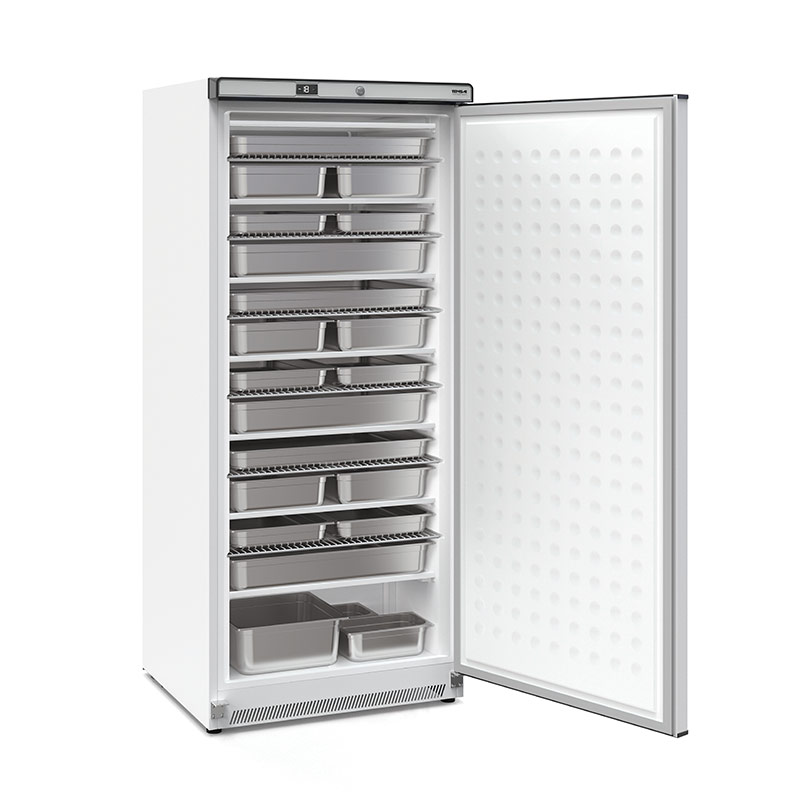

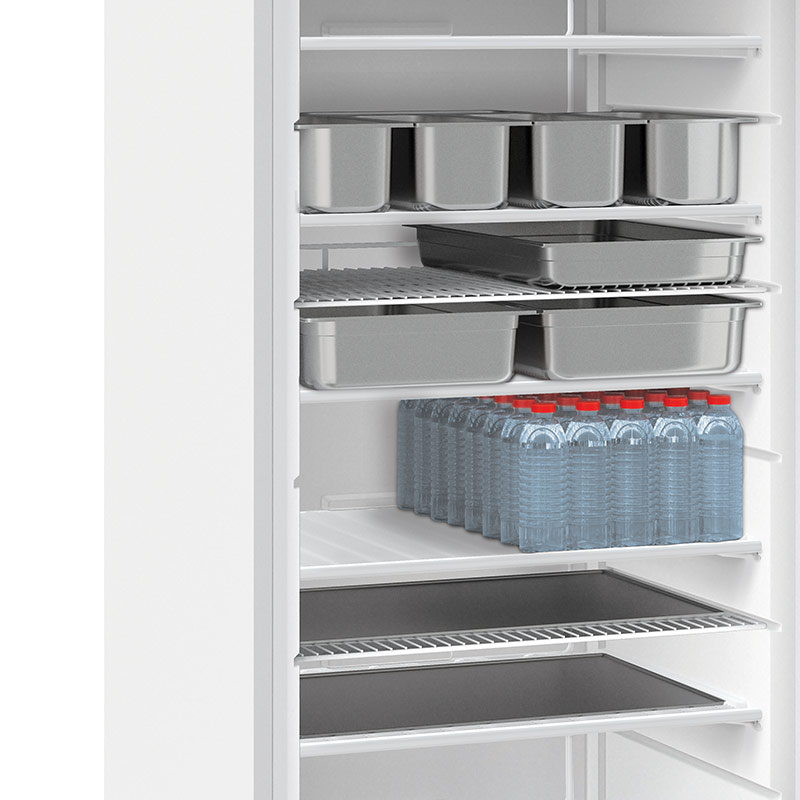

Custom GastronormEquipment tailored to your business
Greater air flow inside the equipment, more uniform temperatures and high capacity for preservation and/or freezing.
Designed to simplify access to all parts and components of the equipment for quick maintenance.
Interior tank provides easy cleaning and sanitising of the equipment.

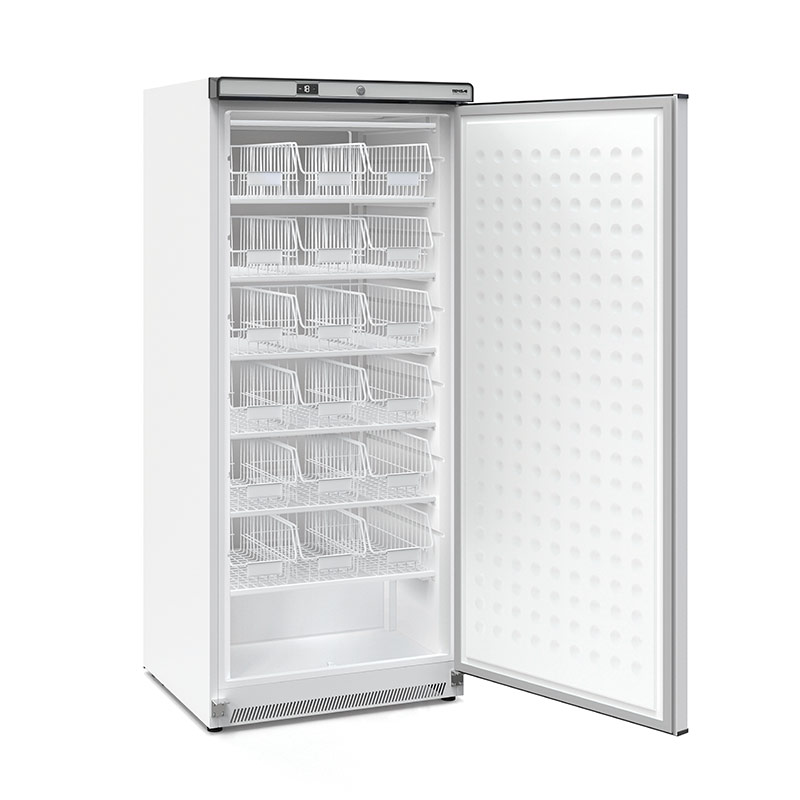

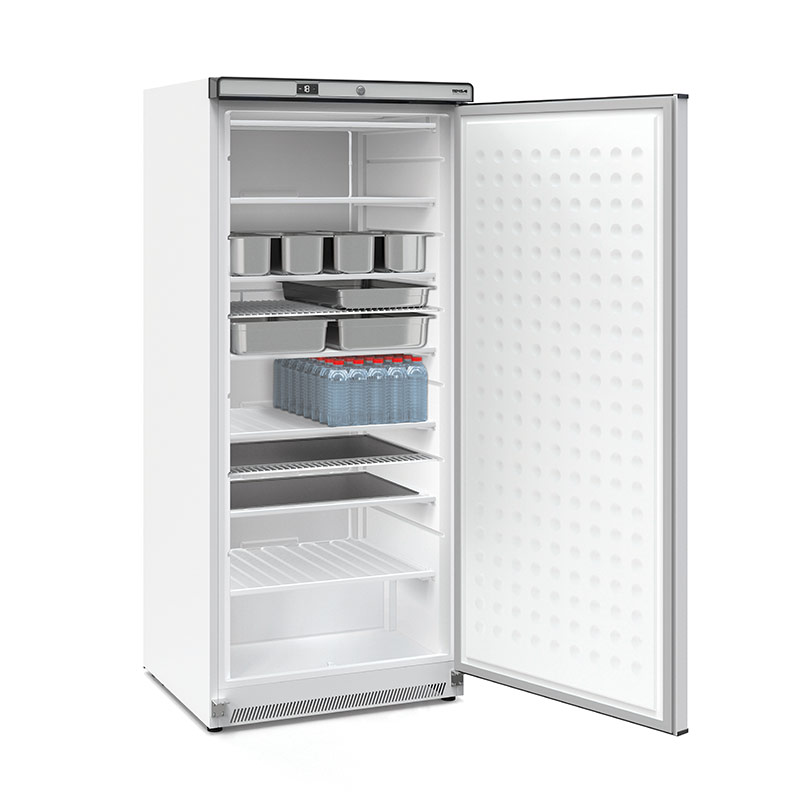

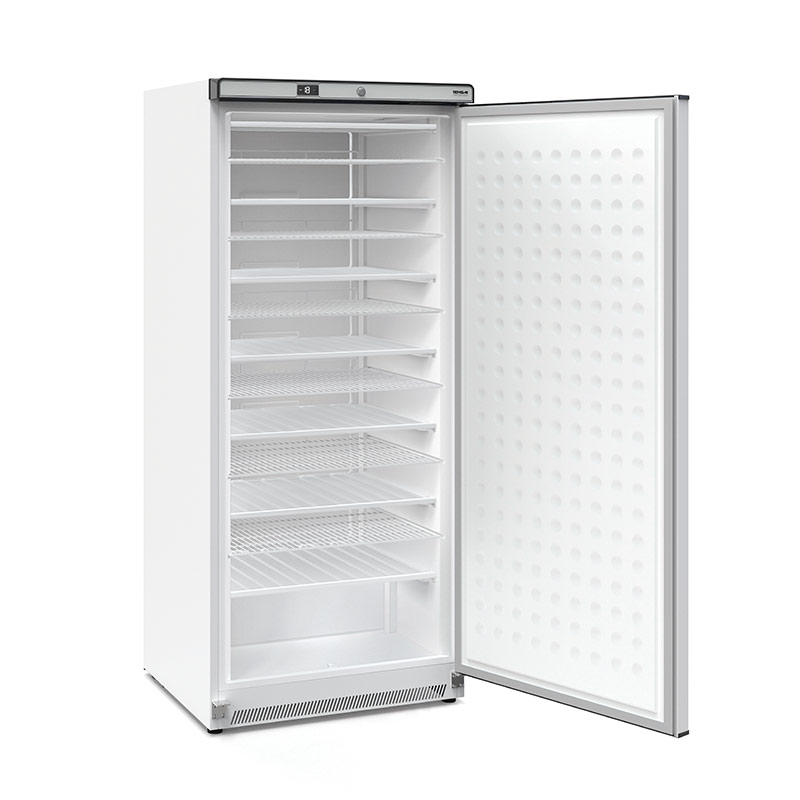

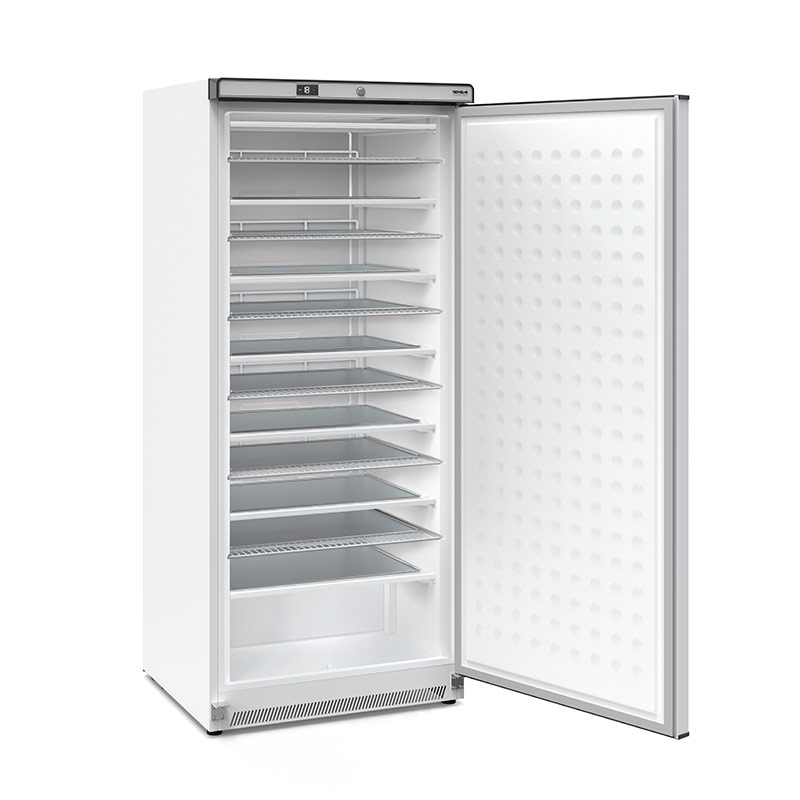

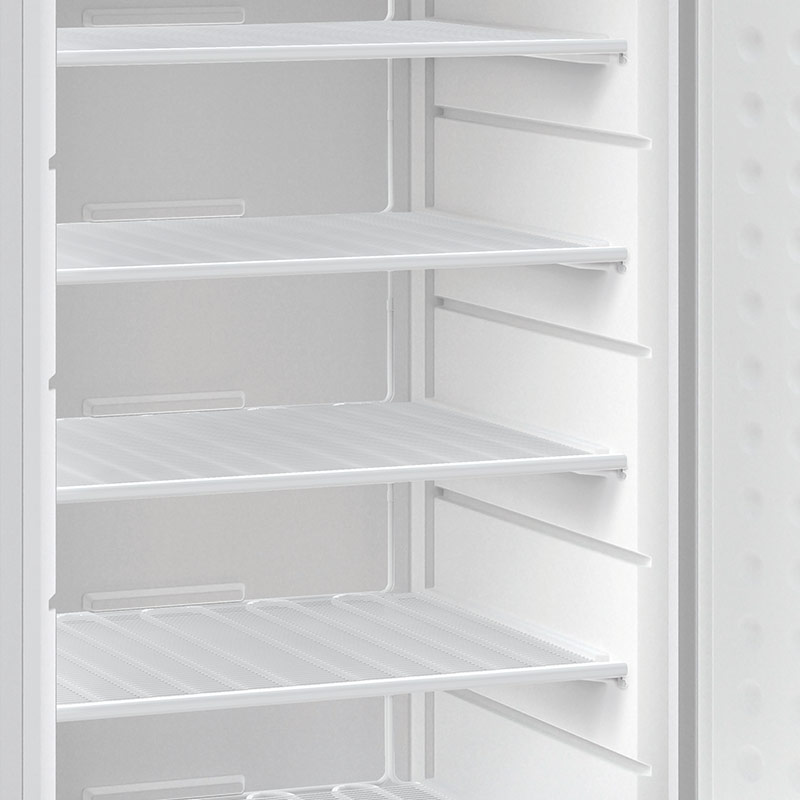

Allows shelf repositioning as needed.
Optimized heat dissipation system enhancing high cooling capacity.
Modern and Attractive Design for any commercial area.

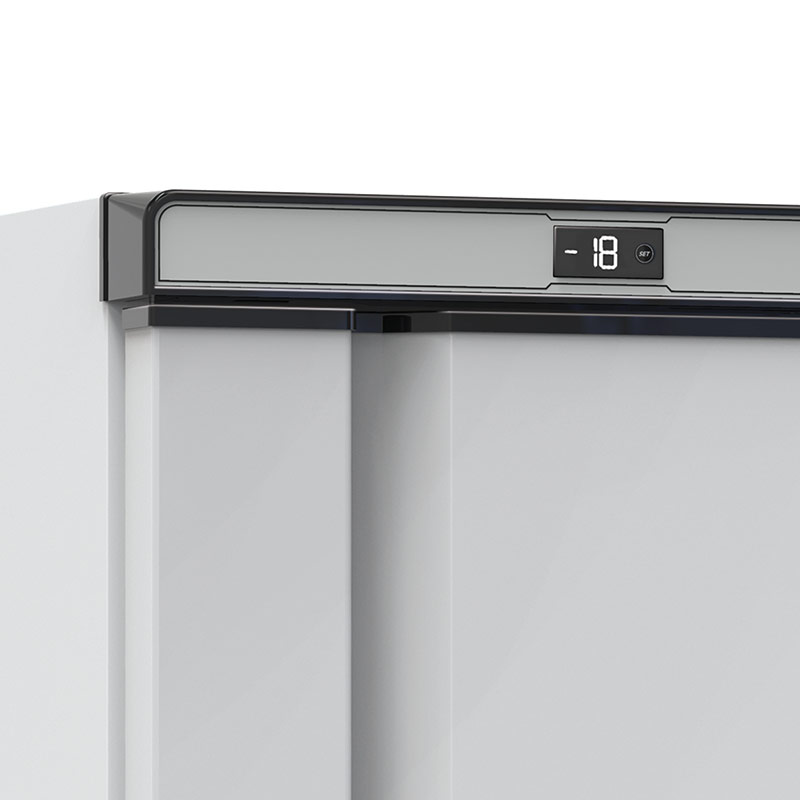

Controller with multiple adjustable parameters, allowing the most suitable use at all times.
Ergonomic, easy to open and easy to clean.
CUSTOMIZATIONS
SPECIFICATIONS
GENERAL CHARACTERISTICS
Energy Efficiency Class (Reg.2015/1904)A
Energy consumption (kWh/24h) 2,685
Energy consumption (kWh/year)980
Total Net Volume (lt) (EN16825)500
Total Gross Volume (lt)605
Climate Class 4
Temperature ClassL1 (-18°C)
Operating Temperature-23°C / -14°C
Voltage (V) 220-240
Rated Current (A) 1,3
Power (W) 205
Frequency (Hz) 50
Refrigerant Gas R600
Electronic ThermostatYes
AlarmYes
Automatic DefrostingNo
Drip Plate for Water EvaporationNo
DIMENSIONS
Dimensions without Packaging (mm) 1900x800x725
Dimensions with Packaging (mm) 2050x880x825
Weight without Packaging (kg) 95
Weight with Packaging (kg) 110
LOADING CAPACITY
Capacity 20´12
Capacity 40´28
Capacity 40´ High Cube28
Capacity Mega Truck45
