ARM120 FVPOGastronorm Cabinet with Opaque Door
- Touch Display
- Leveling Feet or Wheels
- Guides
- Plastic cuvettes
Tailor-made organizationPossibility to place the shelves at your discretion
Protects equipment from electrical damage due to power surges.
Improves the performance of the cold circuit, thus reducing energy consumption. Increases the useful life of the evaporation system, due to lack of resistances.
High performance cooling systems with low energy cost for your business.

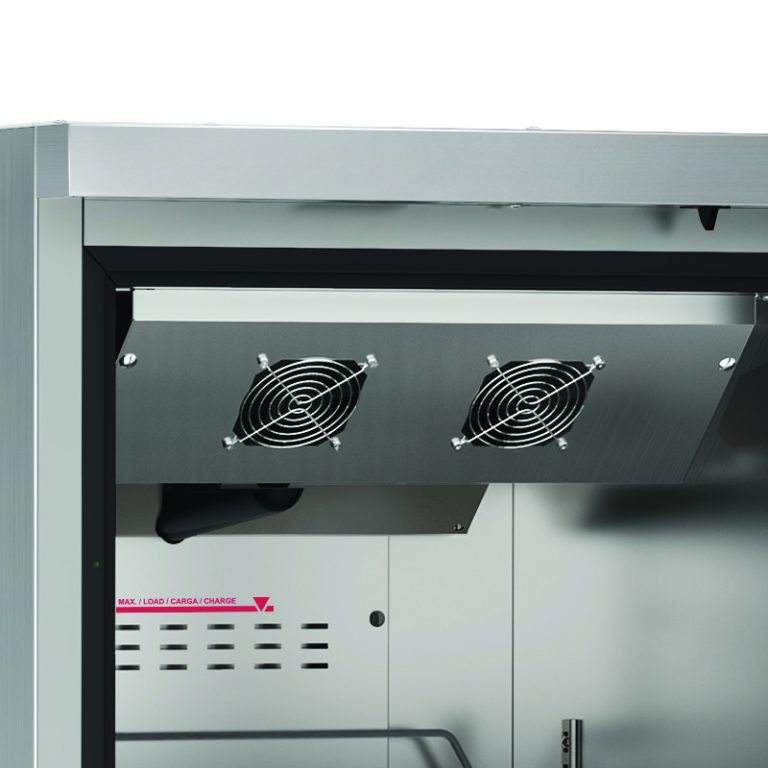

Greater air flow inside the equipment, more uniform temperatures and high capacity for preservation and/or freezing.
Removable sealant for easy maintenance and sanitisation of the equipment.
Designed to simplify access to all parts and components of the equipment for quick maintenance.

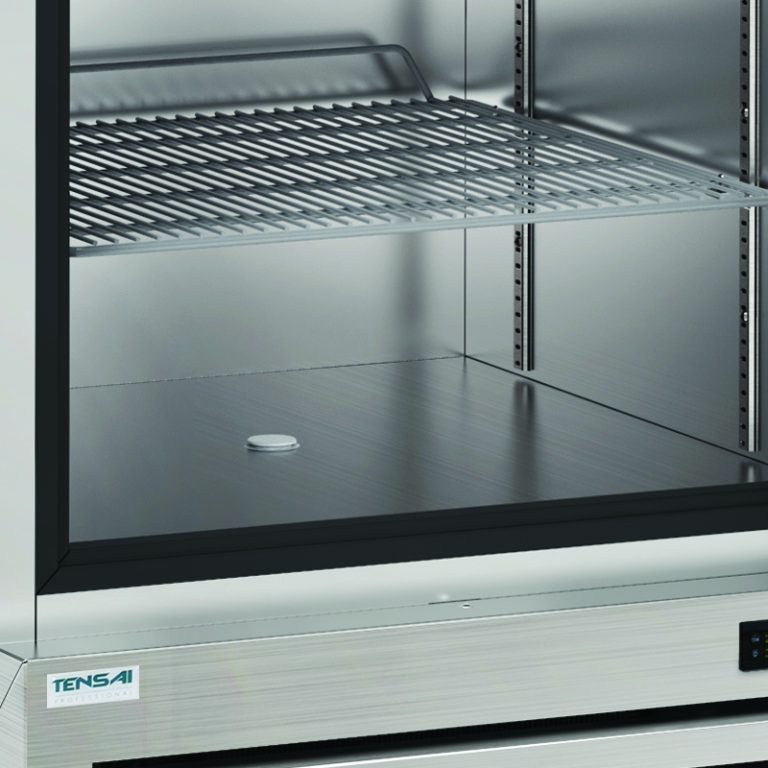

Interior tank provides easy cleaning and sanitising of the equipment.
Allows shelf repositioning as needed.
Modern and Attractive Design for any commercial area.
Controller with multiple adjustable parameters, allowing the most suitable use at all times.
With Global Warming Potential close to zero (GWP=3), the R290 Gas does not destroy the ozone layer or contribute to the emission of greenhouse.
Quickly reaches the selected temperature in environments with high demand, where sequential door opening and placement of loads inside is intense.
Excellent lighting with low energy consumption.
Perfect for professional use, ensuring the door is always closed.
CUSTOMIZATIONS
STAINLESS STEEL AISI304
COLOR
LEVELLING FEET
ROLLERSWHEELS
DIGITAL PRINTING
SPECIFICATIONS
GENERAL CHARACTERISTICS
Energy Efficiency Class (Reg.2015/1904)D
Energy consumption (kWh/24h) 3,500
Energy consumption (kWh/year)1278
Total Net Volume (lt) (EN16825)686
Total Gross Volume (lt)945
Climate Class (EN16825)5
Temperature Class (EN16825)M1 (+5ºC)
Operating Temperature-1°C / +8°C
Voltage (V) 220-240
Frequency (Hz) 50
Electric Power (W) 380
Rated Current (A) 2,50
Refrigerant Gas R290
Electronic ThermostatYes
Ventilated RefrigerationYes
Automatic DefrostingYes
Drip Plate for Water EvaporationYes
DIMENSIONS
Dimensions without Packaging (mm) 2000x1270x735
Dimensions with Packaging (mm) 2155x1355x776
Weight without Packaging (kg) 160
Weight with Packaging (kg) 190
LOADING CAPACITY
Capacity 20´11
Capacity 40´22
Capacity 40´ High Cube22
Capacity Mega Truck28
